Ex-Large Opening Capacity
Designed for oversized industrial openings where conventional rapid roller systems may not be suitable.
Industrial rapid door

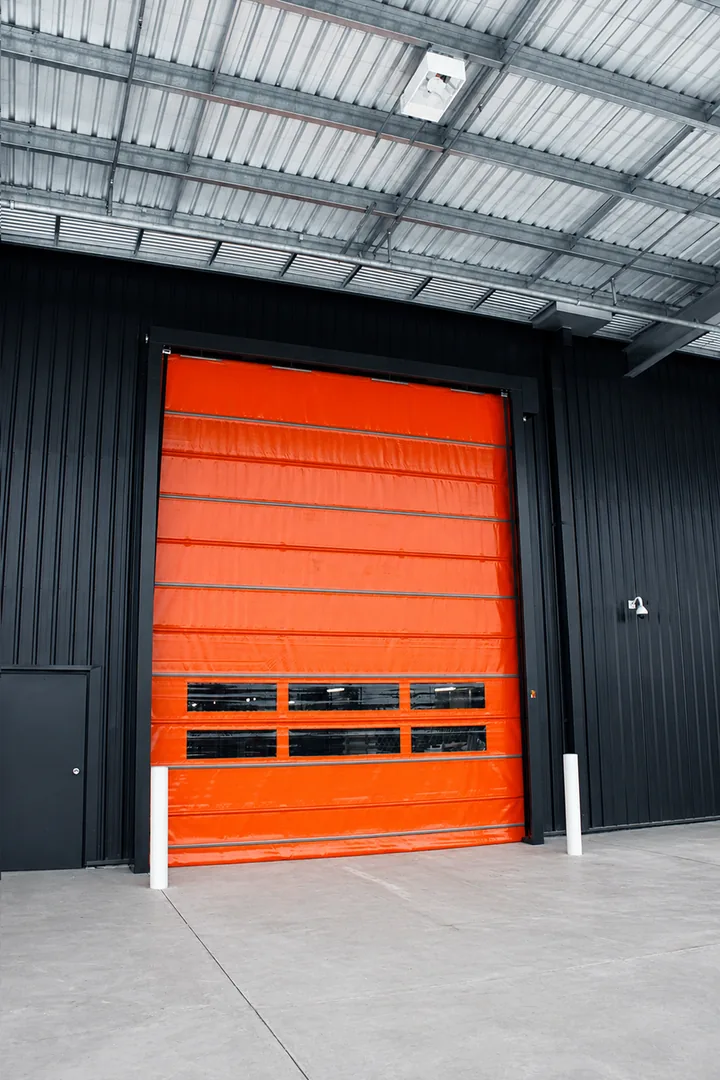

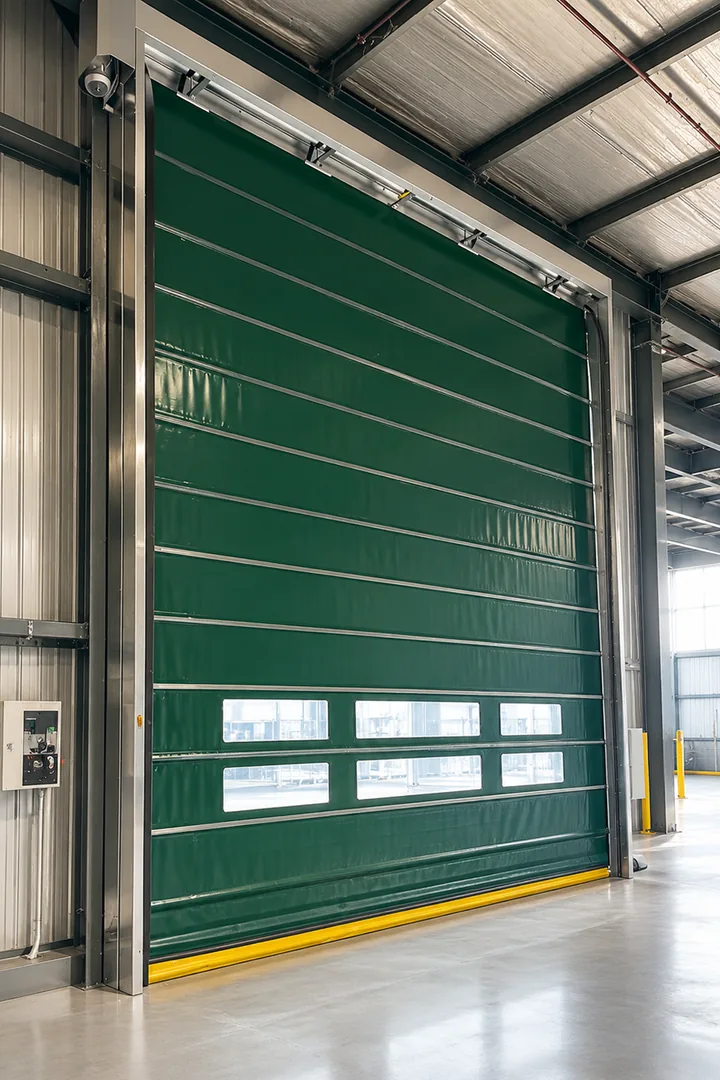

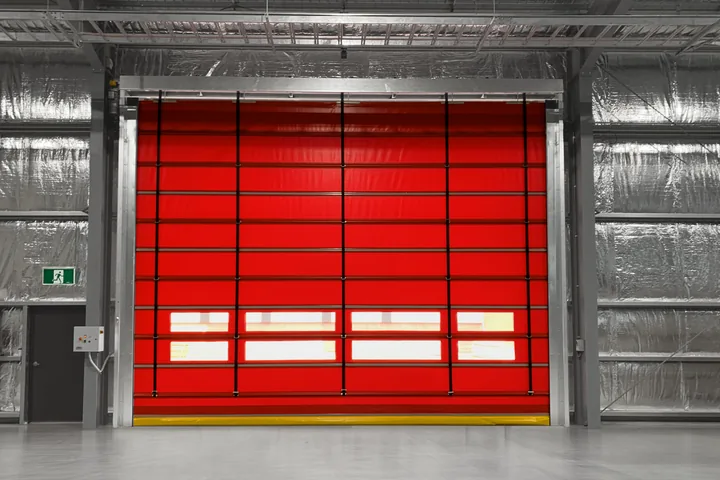

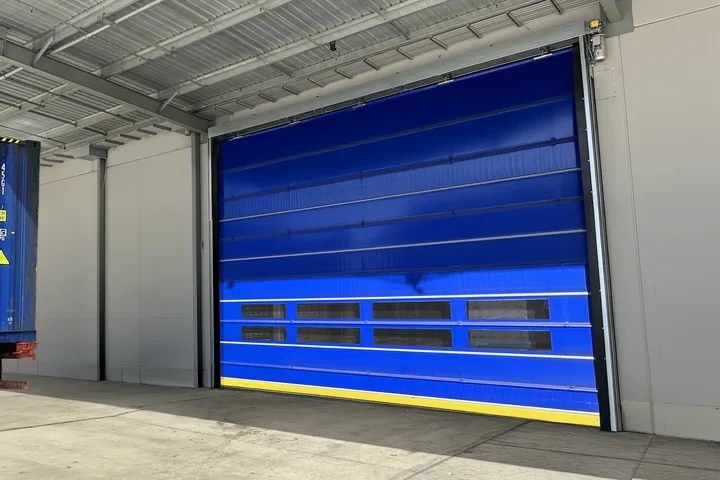

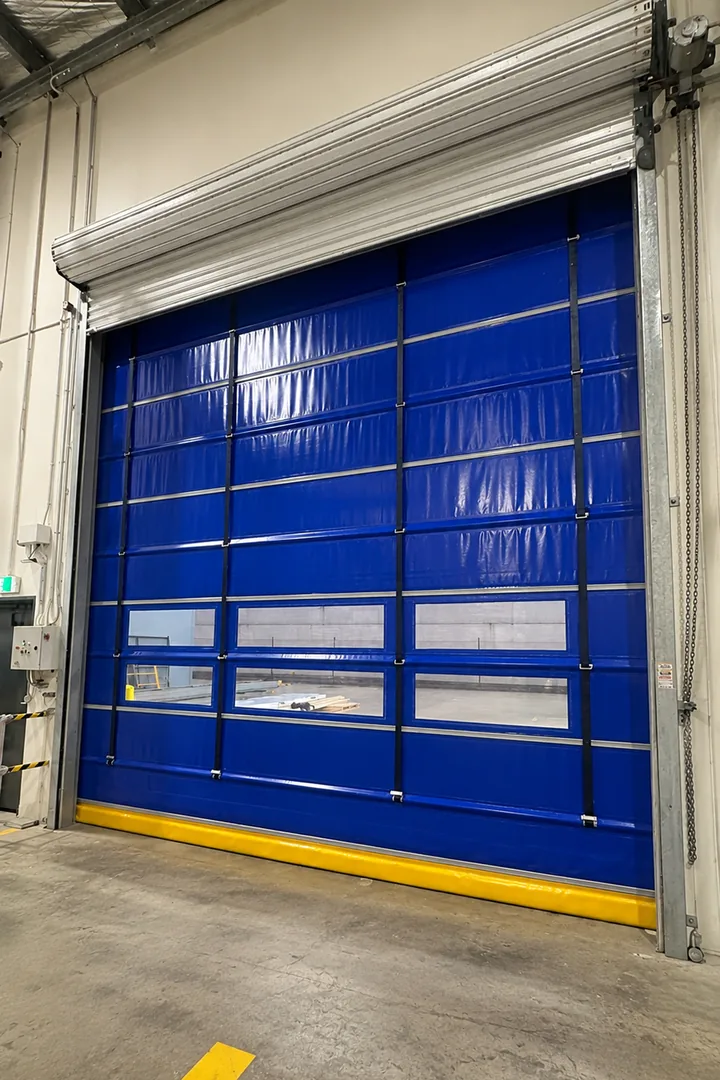

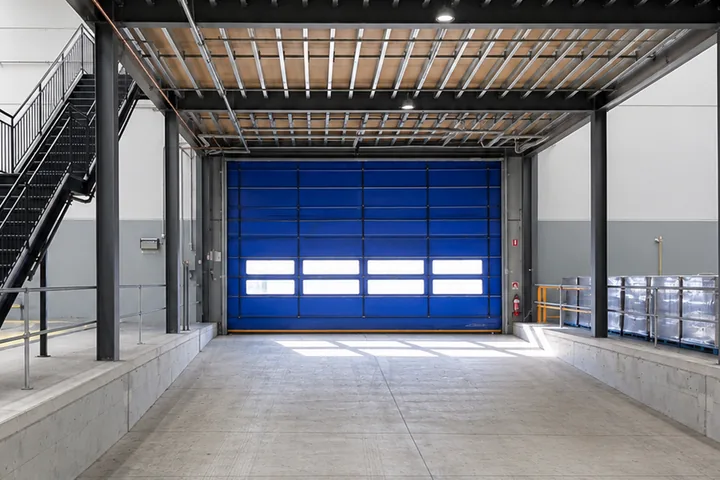

Cadence | CAD01
The Cadence Series is engineered for oversized industrial openings requiring exceptional structural strength and wind resistance. Its heavy-duty folding design delivers reliable low-maintenance operation in demanding industrial applications.
Key Benefits
- Suitable for extra large openings up to 8m x 8m
- Heavy-duty construction for high wind-pressure environments
- Folding configuration for oversized access points
- Reliable low-maintenance industrial operation
Key Features
The CAD01 uses a rapid folding door configuration to support oversized industrial openings where conventional roller systems may not be suitable.
Its large-span structure is designed for heavy industry, hangars and wind-exposed access points requiring strength, stability and controlled operation.
Heavy-Duty Performance
Robust structure suited to heavy industry,logistics facilities and demanding industrial environments.
Wind-Resistant Structure
Designed for large industrial openings where wind exposure and demanding site conditions must be considered.
Modular Curtain System
Designed for efficiency, replaceable curtain sections simplify maintenance and reduce downtime during repairs.
Integrated Safety
Photoelectric sensors and safety systems support safe operation around equipment and vehicles.

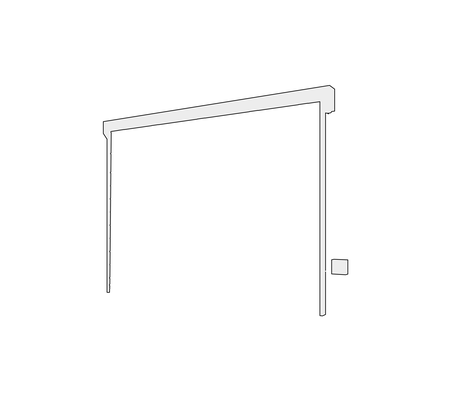

Folding Door Configuration
Folding curtain operation supports controlled movement without relying on a roller drum system.
Technical Specifications & Available Options
Technical specifications
| Recommended Door Size | Up to approx. 9.0 m W × 6.0 m H |
|---|---|
| Application | Internal / External |
| Operating Temperature | 0°C to +50°C |
| Opening Speed | Up to 1.0 m/s |
| Closing Speed | Up to 0.6 m/s |
| Power Supply | 415 V / 3-phase |
| Curtain Material | Reinforced PVC-coated polyester |
| Curtain Construction | Segmented rapid folding curtain design |
| Reinforcement | Flexible fibreglass stiffeners |
| IP Rating | IP54 standard / IP65 optional |
Standard Door Colours

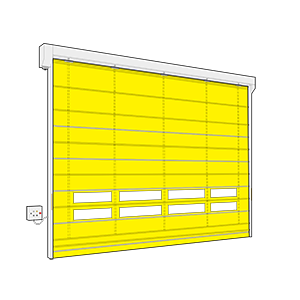

Yellow

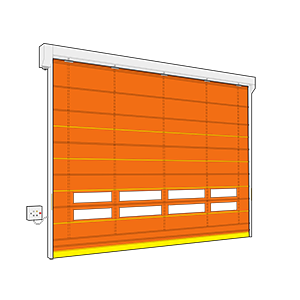

Orange

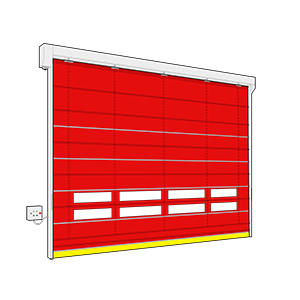

Red

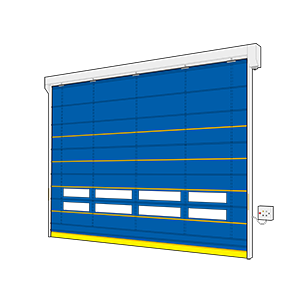

Blue

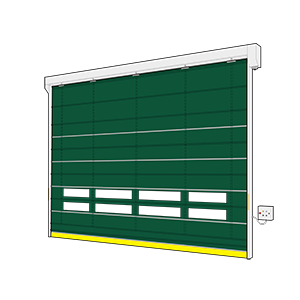

Green

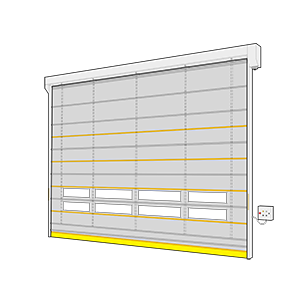

Grey
Ready to configure your CAD01?
Talk to our team about opening size, duty cycle, site conditions and activation requirements.
We’ll help specify a rapid door system suited to your operation.
